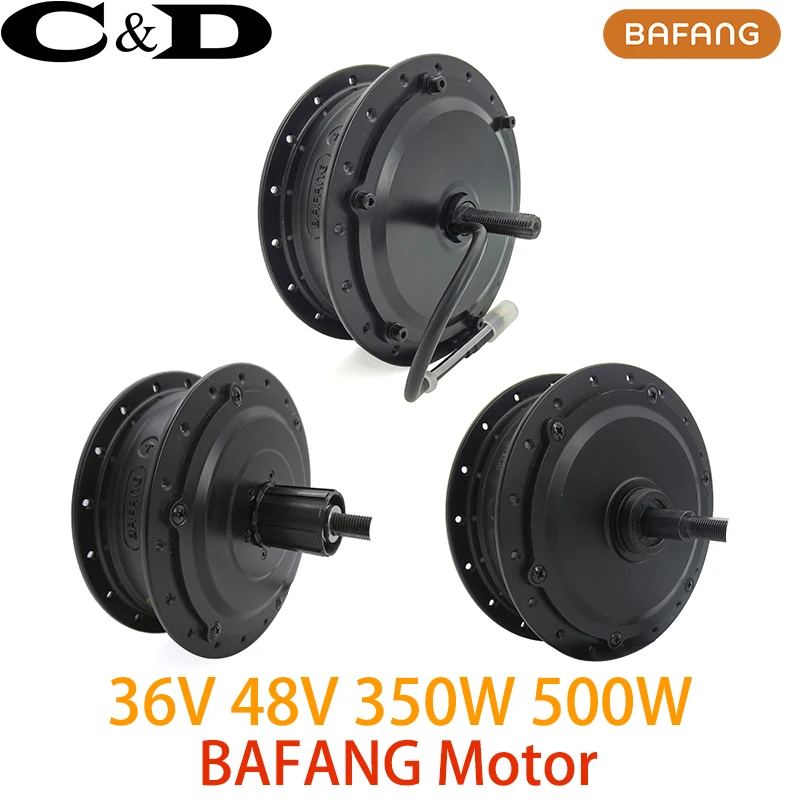

36V 48V 350W 500W bafang 8fun SWX02 Gear Hub Motor High Speed E-bike Front Rear Cassette RM G020.350.D DC G020.500.D DC

Brand Name BAFANG

Voltage 48V

Design Brushless

Wattage 301 - 400w

Motor Type Brushless Gear Hub Motor

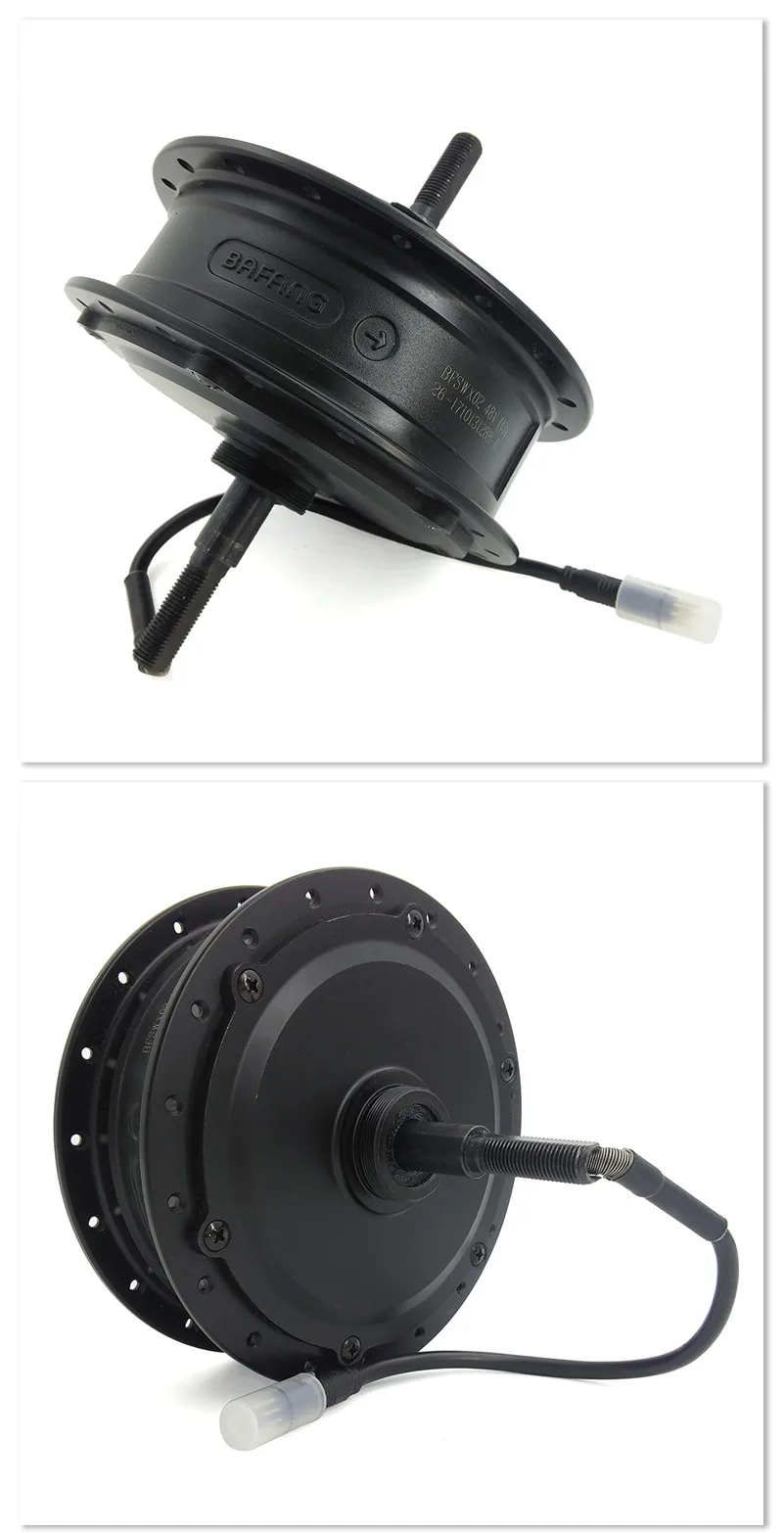

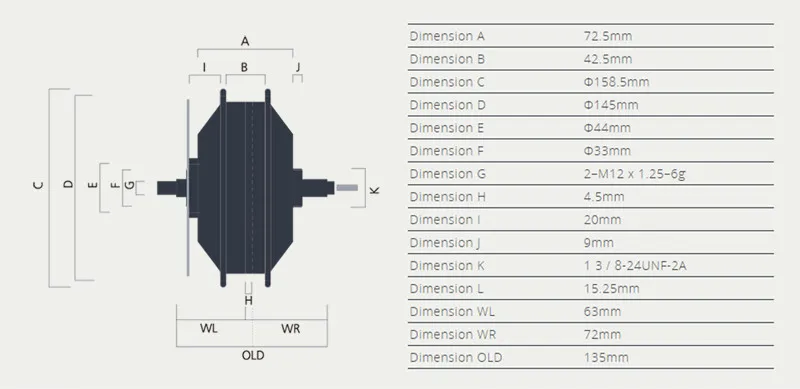

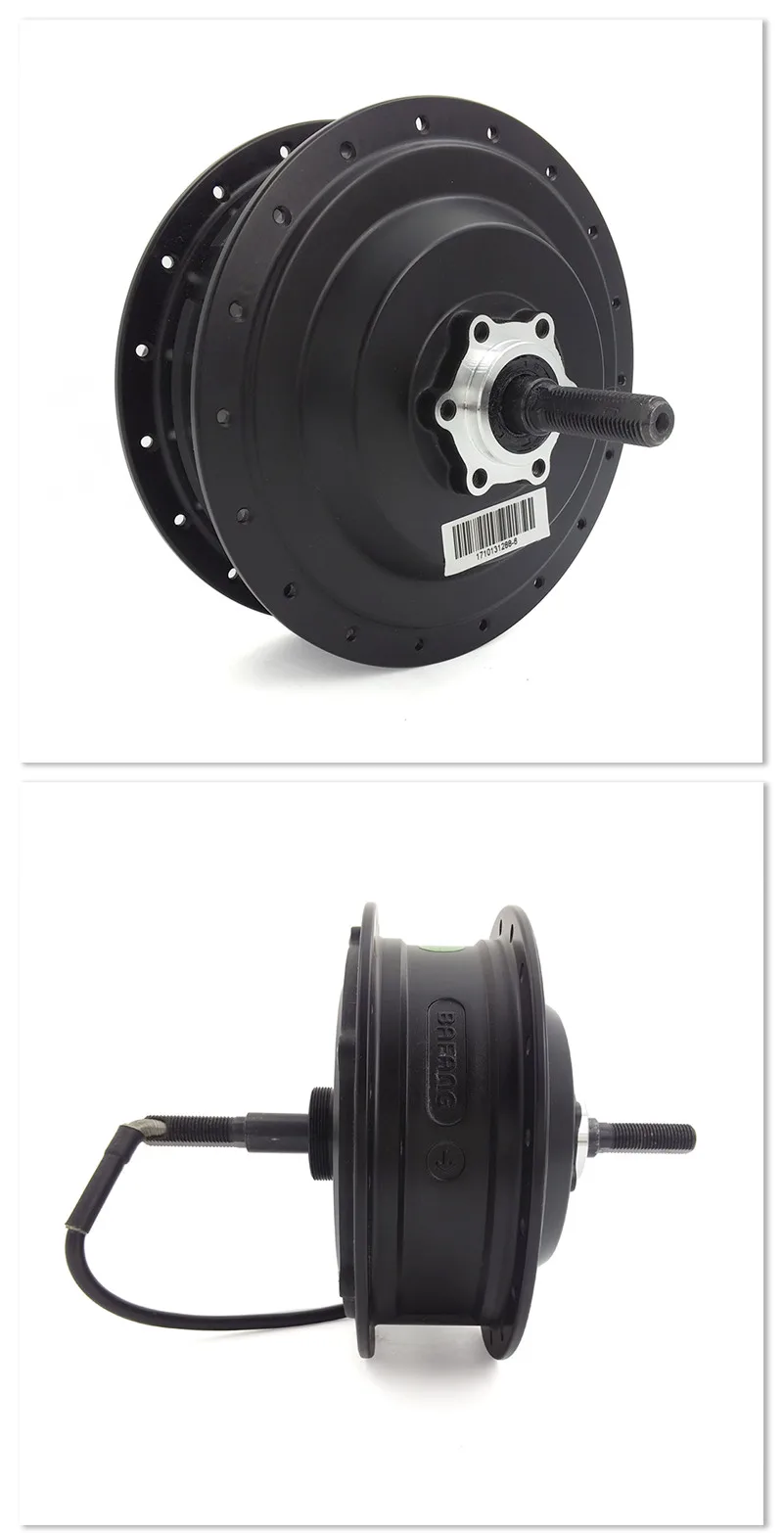

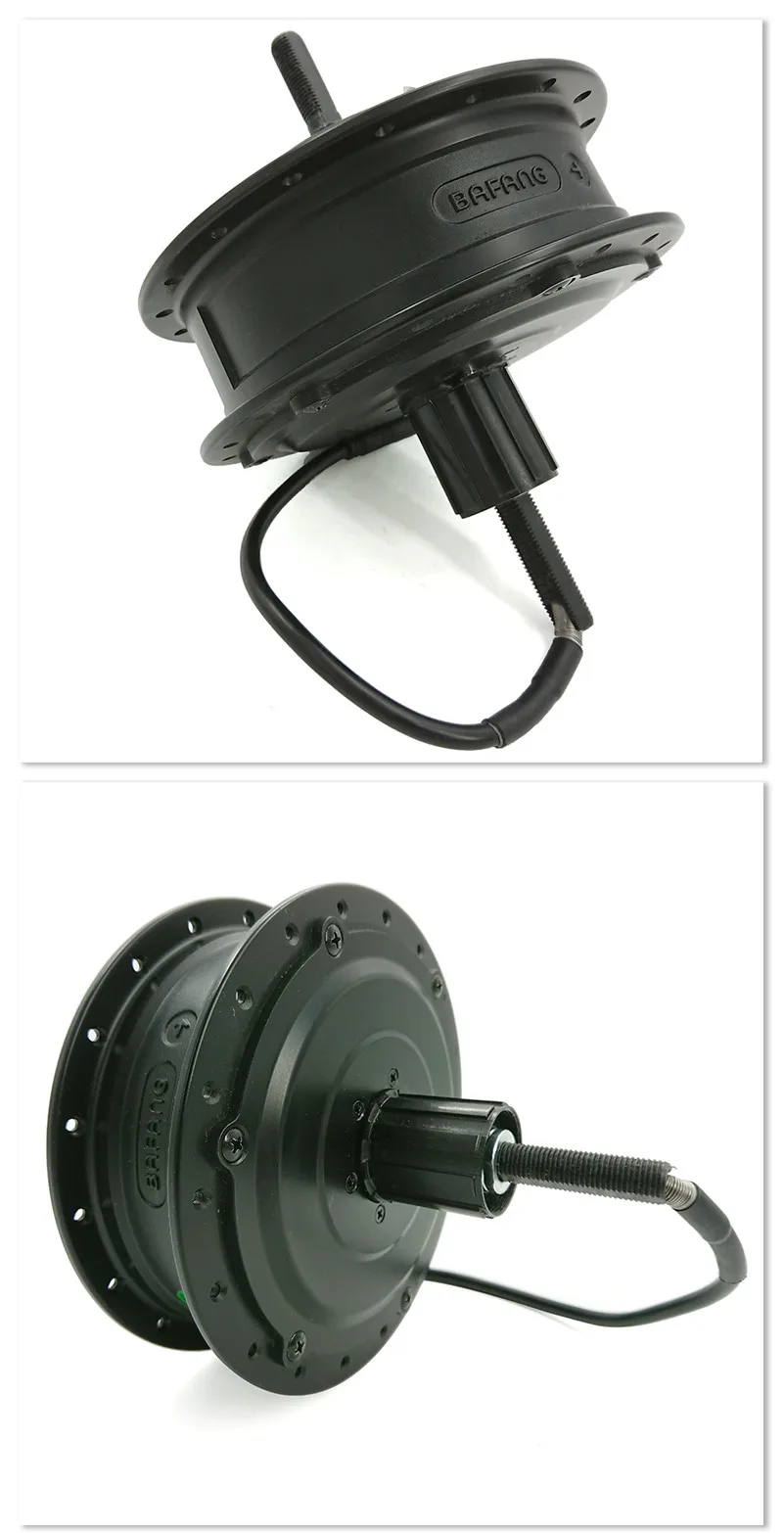

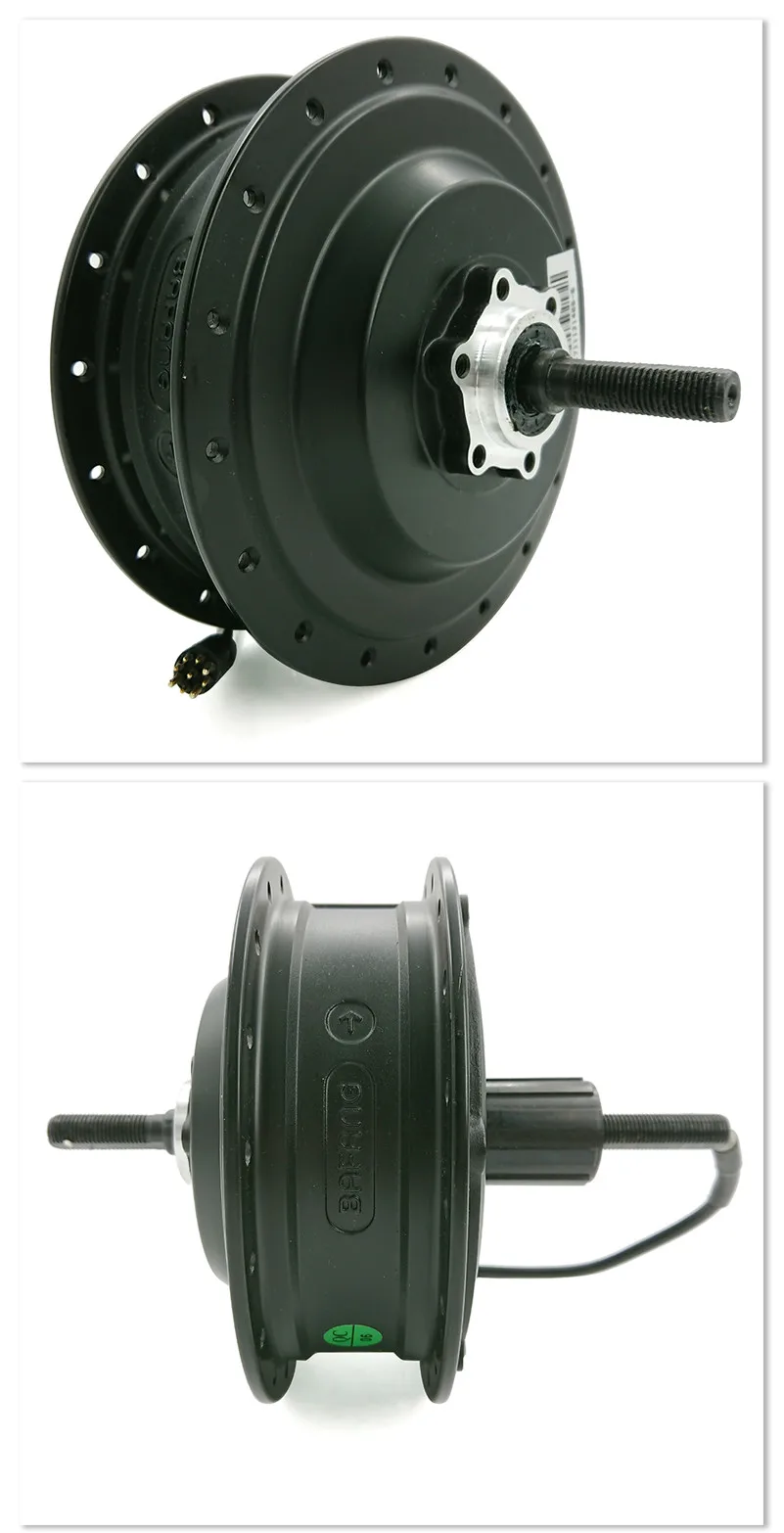

Front Motor CoreData Position FrontMotor WheelDiameter(Inch) 20/26/27.5/28 Construction Geardrive RatedVoltage(DCV) 36/43/48 n0(Rpm) 36V 350W:312 ; 48V 350W:352; RatedPower(W) 350 nT(Rpm) 290;205 MaxTorque 45N.m Efficiency(%) ≥80 Color Black Weight(kg) 3.3 NoiseGrade(dB) ＜55 OperatingTemperature -20-45℃ MountingParameters Brake DiscBrake InstallationWidths(mm/OLD) 100 Max.HousingDiameter(mm) 158.5 CablingRoute ShaftDide,Right CableLength(mm),ConnectionType 250G9.1 SpokeSpecification 36H*13G FurtherSpecifications SpeedDetectionSignal(Pulses/Cycle) 6 ReductionRatio 1:5 MagnetPoles(2P) 20 Tests&Certifications IP IP65 Certifications ROHS/CE SaltSparyTestStandard(h) 96 Rear Motor CoreData Position RearMotor WheelDiameter(Inch) 26/27.5/28 Construction Geardrive RatedVoltage(DCV) 36/43/48 n0(Rpm) 325;245 RatedPower(W) 350 nT(Rpm) 290;205 MaxTorque 45N.m Efficiency(%) ≥80 Color Black Weight(kg) 3.3 NoiseGrade(dB) ＜55 OperatingTemperature -20-45℃ MountingParameters Brake DiscBrake InstallationWidths(mm/OLD) 138 Max.HousingDiameter(mm) 158.5 CablingRoute ThroughShaft,Right CableLength(mm),ConnectionType 250G9.1 Gearshift Freewheel(6S/7S/8S/9S) SpokeSpecification 36H*12G FurtherSpecifications SpeedDetectionSignal(Pulses/Cycle) 6 ReductionRatio 1:05 MagnetPoles(2P) 20 Tests&Certifications IP IP65 Certifications ROHS/CE SaltSparyTestStandard(h) 96 Cassette Motor Front Motor Rear Motor Cassette Motor
